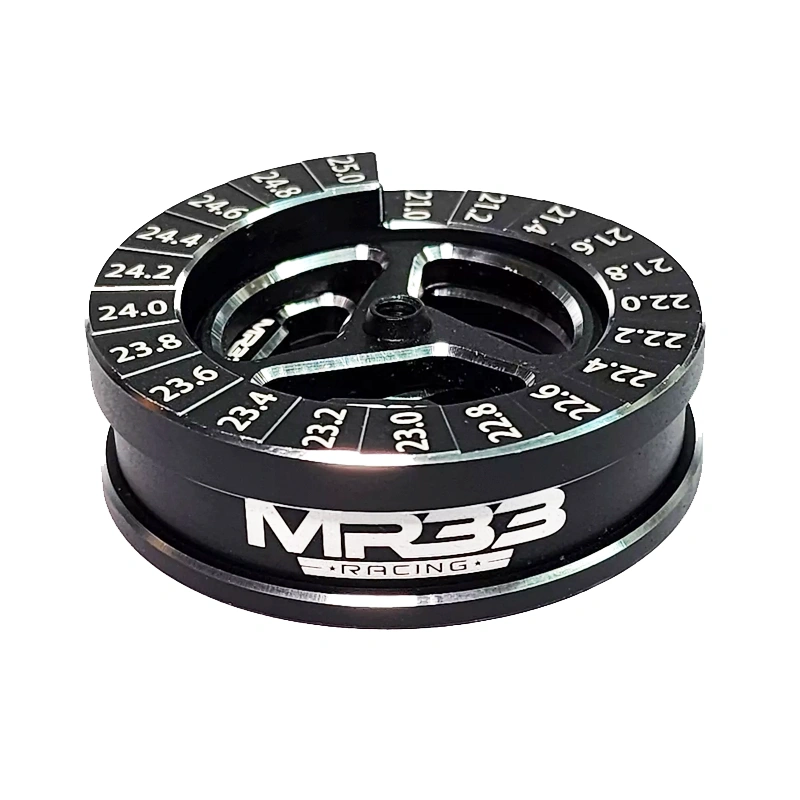

MR33 Circle Droop Gauge Downstop Gauge V2

The MR33 Circle Droop Gauge V2 makes measuring and adjusting the droop on your 1:10 touring car or FWD model more precise than ever before!

Why is that?

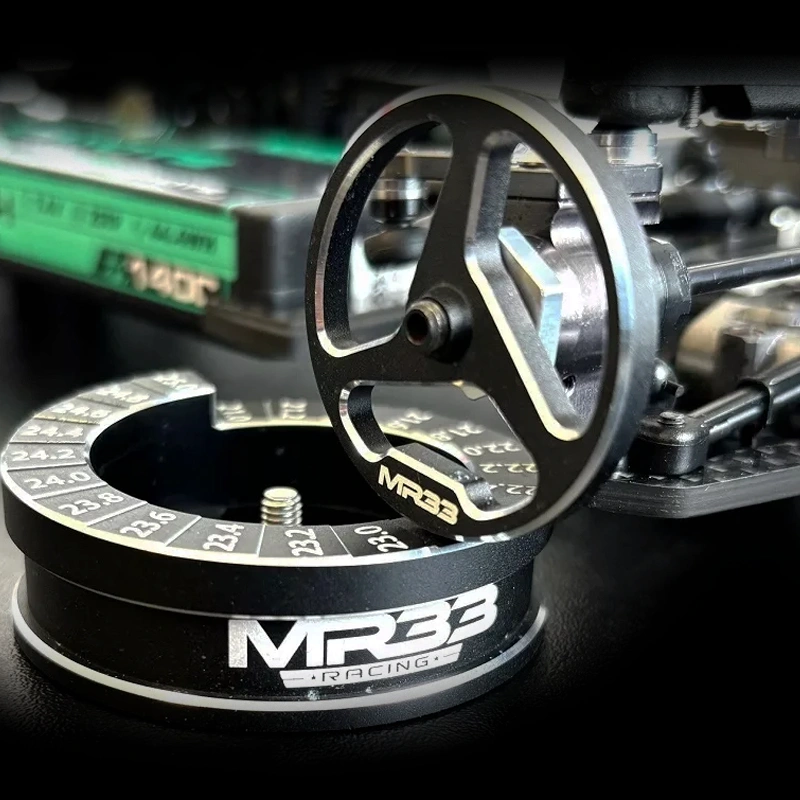

The two small aluminum wheels (which are very conveniently integrated into the Droop Gauge) are screwed onto the wheel axles of your vehicle.
The droop is then measured at the lower edge of the aluminum wheels.
The measurement is then more accurate because you always measure at the center of the wheel axle and tolerances in wheel carriers, wishbones, and other components of your vehicle no longer play a role.

How do I compare the values with my 'old' droop values?
The new MR33 Circle Droop Gauge V2 is graduated in 0.2mm increments and has a measuring range of 21.0 - 25.0mm.
To be able to compare these values with the conventional, well-known rebound travel of your current vehicle (e.g. 4.0 or 6.0), you simply have to carry out a comparison measurement. You can then write these values down in a small table, for example, so that you can quickly see at the race track how to compare the values of the 'new' gauge with those of the 'old' one.

What is included in delivery?
MR33 Circle Droop Gauge V2
2 bolt-on aluminium wheels

What else is needed to measure the rebound travel?
10mm droop blocks on which the vehicle is placed during the measurement process (e.g. MR33-DB)
