SCS Shims Set: Precision Spherical Contact Solutions for Optimal Performance

SCS Shims: Precision Contact, Ultimate Performance, Guaranteed Fit.

Alright, buckle up buttercup, because this ain't your grandma's knick-knack. We're talking pure, unadulterated awesome. This thing, this glorious… whatever it is… it's got soul. It’s got swagger. It's got that "I woke up like this" kinda vibe. Forget everything you thought you knew about… well, everything. This is the upgrade you didn't know you needed, the missing piece to your puzzle, the cherry on top of your sundae of amazing. Seriously, you'll be the envy of everyone you know. They'll be begging to know where you got it. Don't tell them. Just let them wallow in their mediocrity while you bask in the glow of your new… thing. So, what are you waiting for? Treat yo' self. You deserve it. Get it now. Before I change my mind and keep it.

$4.47 $8.93

num:

description

A12-SCS - Spherical Contact Shims set for A12

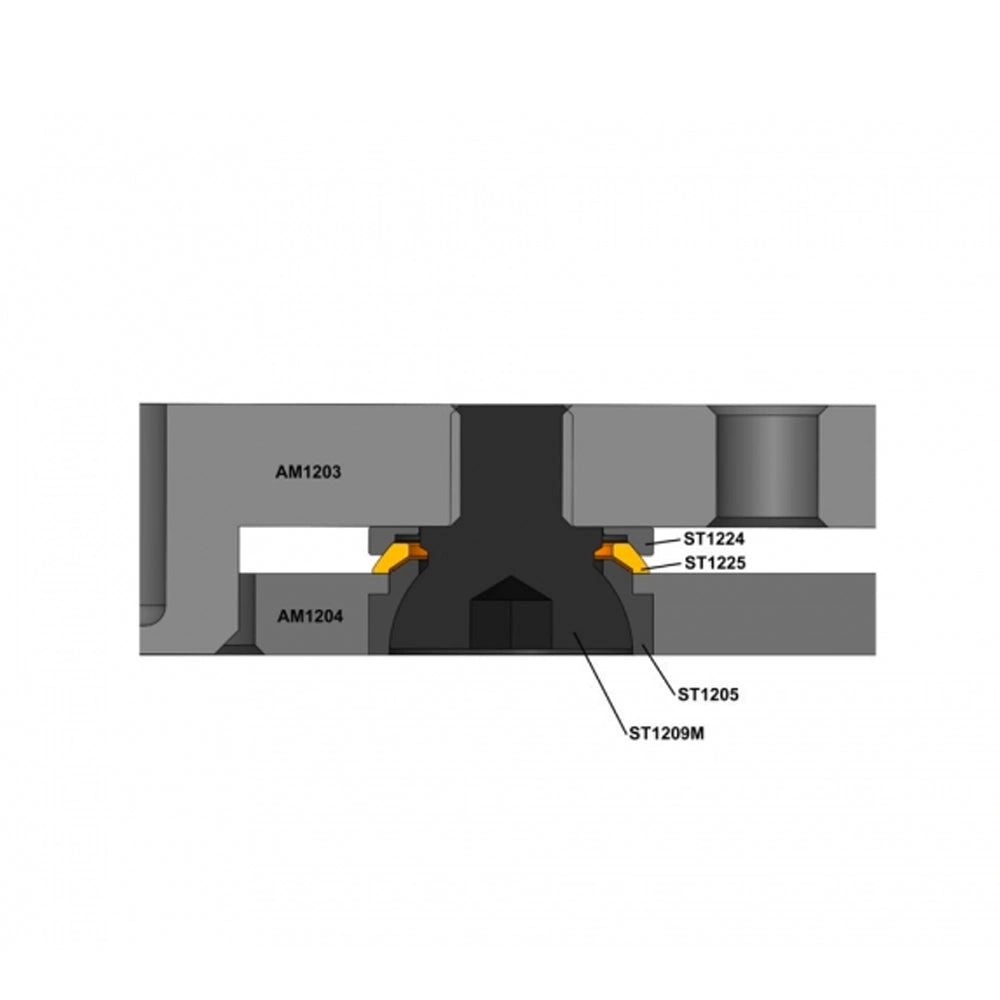

The Spherical Contact Shims set can be installed in the rear ball joint (ST1209M) instead of the OR125 O-ring.

The SS3x4 screw in the Battery plate is not needed at thus and should be removed.

This Contact Shims prevent vertical movement in other directions but allows swing and rotation.

Benefits of SCS set:

- smooth and consistent operation without the need of further re-adjustments like it's normal with the SS3X4 screw use.

- not any scratching of AM1204 chassis surface.

INSTALLATION AND ADJUSTMENT:

Even tiny tolerances of the SCS set itself and also the surrounded parts can lead to A) binding or B) too much free play.

A) Sand the lower surface of ST1225 very gently to remove ~0,03mm !

B) Use thin tape (0,0Xmm) or 0,05mm shim (6x8mm) under ST1225.
TIP: Attach a small piece of tape first on AM1204 and cut the round hole via RC knife using the existing 6mm hole in AM1204 as a guide.
Then place the cutted piece of tape on AM1203.

Contains:

1x ST1225 - Spherical Pad
1x ST1224 - Spherical Washer
